Described in the simplest terms, a split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.
The Platinum Series of split systems allow you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.
If you don’t mind seeing the grille of your cooling unit in your cellar, a wall-mounted split system is what you need. If you prefer your unit to be out of sight, you should get a fully ducted split system. The choice is yours.
Note: A qualified HVAC-R technician is required for installation. Failure to have the system installed by a qualified technician will void the warranty.

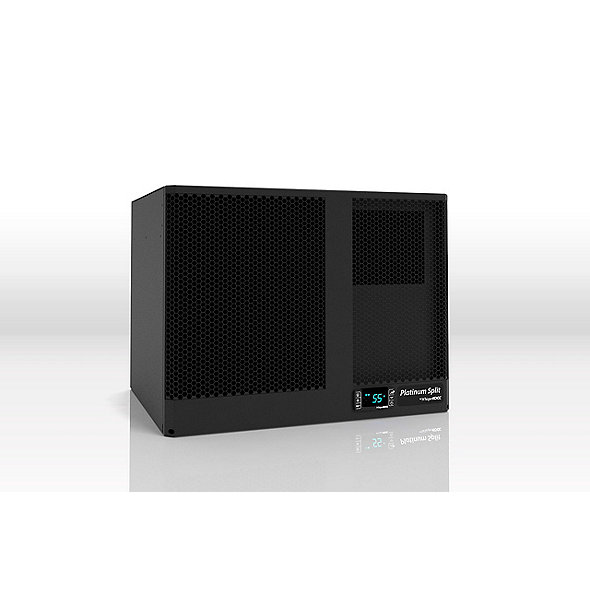

The Platinum Split WhisperKOOL 8000 sets the new standard for in-cellar split systems. This completely new design improves airflow efficiency 25% and operates 10% quieter, all while being 35% smaller than our previous split system evaporator. The system continues to use our liquid bottle probe for monitoring the actual temperature of the wine to ensure the wine is being kept at 55Â°F
- Quiet and efficient operation
- An advanced electronic control system
- Liquid bottle probe
- Humidity control
- Energy-saving mode
- Alarm capabilities
- Flexible installation
- 55F temperature differential
- Condensing unit can be placed outdoors w/optional housing
- Cold weather start kits come standard
WhisperKool Platinum Split 8000 (Wall Mounted) Specifications:
- Cellar Size: 2000 cu. ft.
- dBA: Evaporator: 54 Decibels; Condenser: 65 Decibels
- Dimensions: Evaporator: 20.5"w x 15.5"h x 14.5"d; Condenser: 12"w x 13.5"h x 18"d
- Weight: Evaporator: 56lbs; Condenser: 66lbs
- Amps (starting/running): Evaporator: 2/1; Condenser: 18/9
- Installation: Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away.
- Temp. Delta: 55°F temperature differential.
- Thermostat: Digital Control Display
WhisperKool Platinum Split 8000 (Wall Mounted) Cooling System
